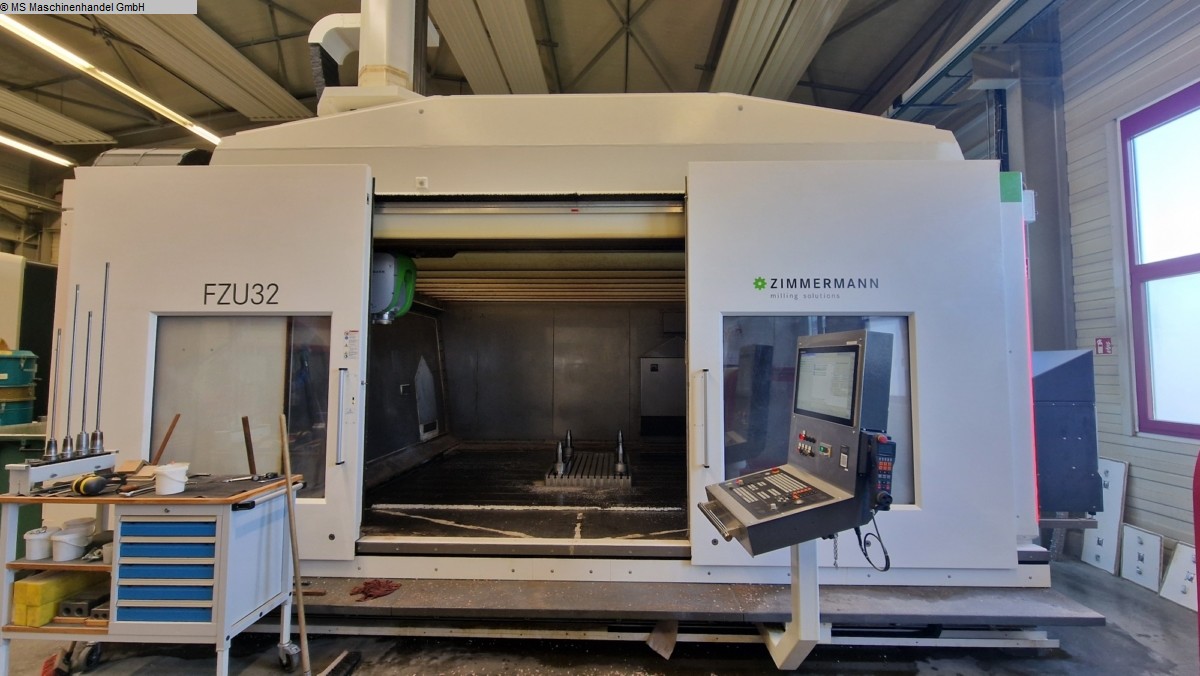

ZIMMERMANN FZU 32 portal milling machine

Maschinen Info

  • Construction Date

    2022

  • Category

    Milling machines, metalworking machines

Article no. 2034-211
Location: Germany



Description of the

This thermosymmetrical. Ergonomic. Universal ZIMMERMANN FZU32
The portal milling machine is in mint condition and can be delivered by arrangement.
still be secured under power at the point of sale.

DESCRIPTION:
The FZU32 is a remarkably compact 5-axis gantry milling machine for
Processing of aluminium, fibre composites, plastics, Ureol and
steel. Thanks to the particularly rigid, newly developed centre-guiding portal
We take into account the increasing requirements in model, tool and mould making
wear. This thermo-symmetrical design makes the FZU32 less susceptible to
adverse ambient conditions.



Technical details

x-way 2500 mm
y-path 3500 mm
z-path 1500 mm

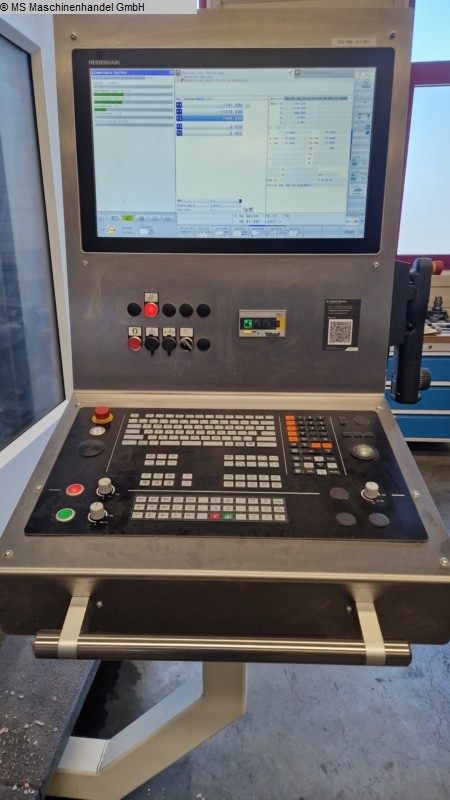

Control HEIDENHAIN TNC 640
c-axis +-360 °

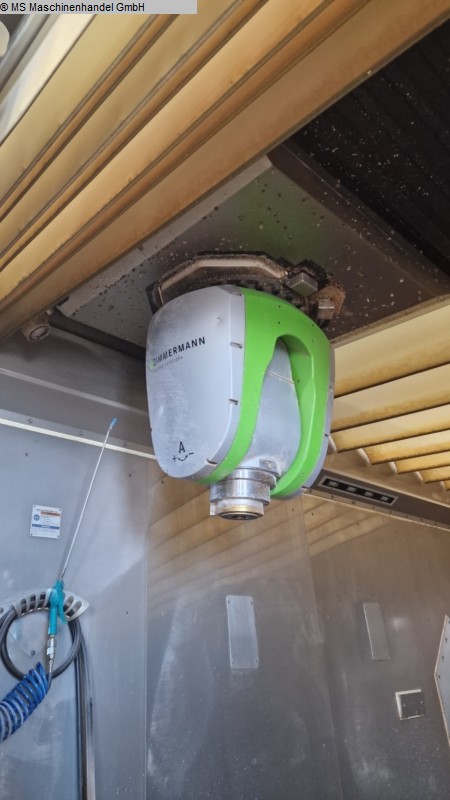

Milling head - swivelling + / - +-110 °
Milling head rotatable by +-360 °

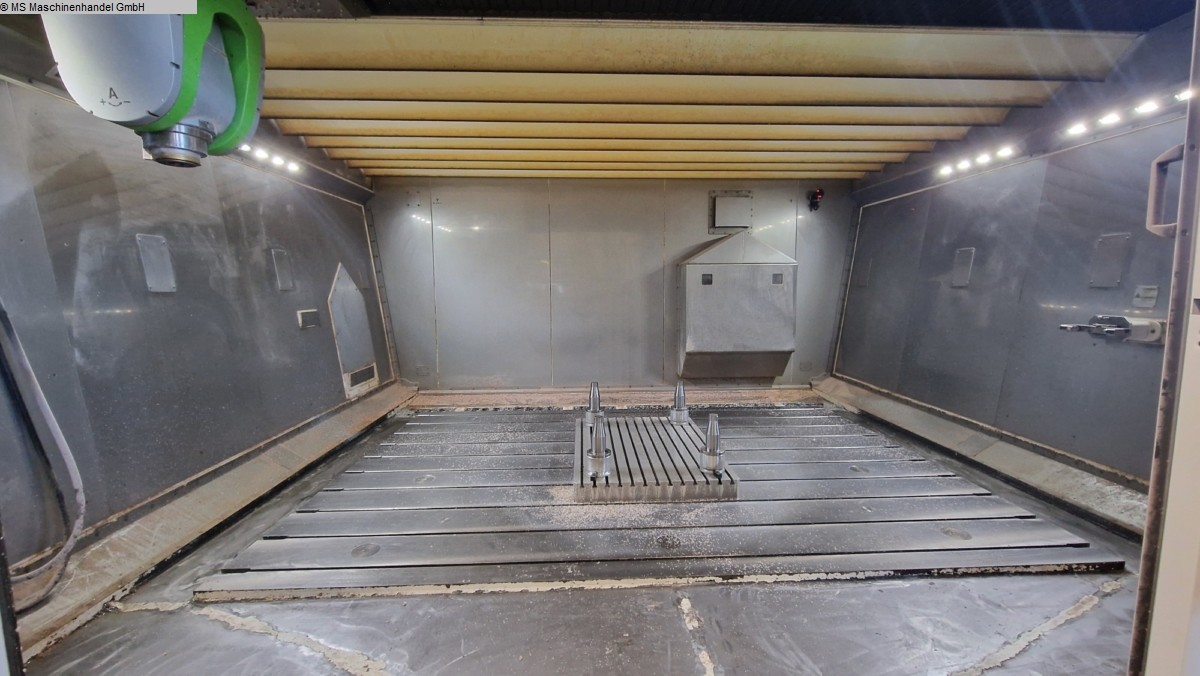

Table dimensions - lengthwise 2500 mm
Table dimensions - transverse 3500 mm
Table load 6 t/m²
Coolant unit IKZ 70 bar
Feed speed 60 m/min.
Spindle speeds 24000 rpm
HSK-A63 tool holder
Milling spindle motor S6 (40% / 2 min) 41 kW
Torque on spindle S6 (40% / 2 min) 49 Nm
Milling spindle motor S1 (100% / 2 min) 34 kW
Torque at spindle S1 (100% / 2 min) 39 kW
Tool changer 60 Pos.
Total power requirement kW
Machine weight approx. 74 tonnes
Space requirement approx. 4 x 7.5 x 5.4 m
