Article no. 2034-220
Location: Germany



Description of the

---

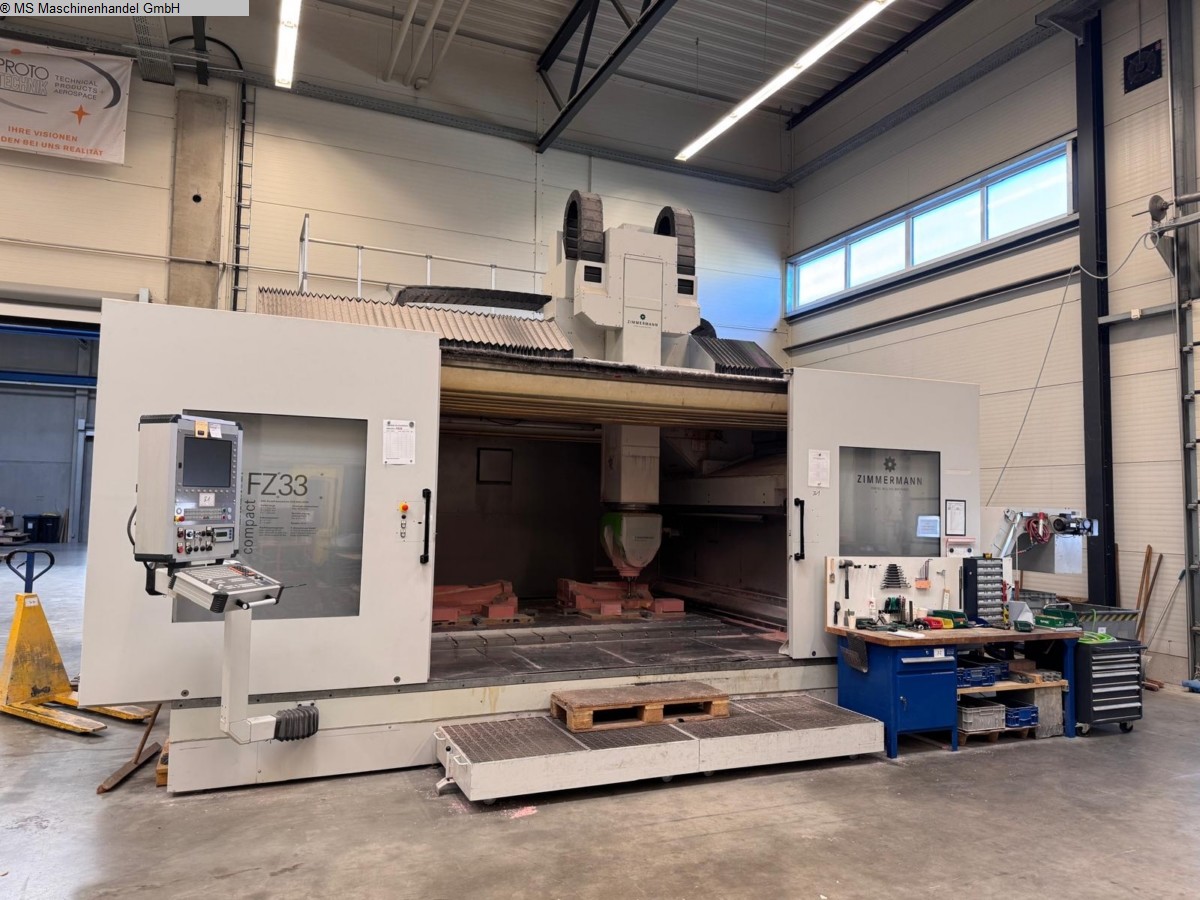

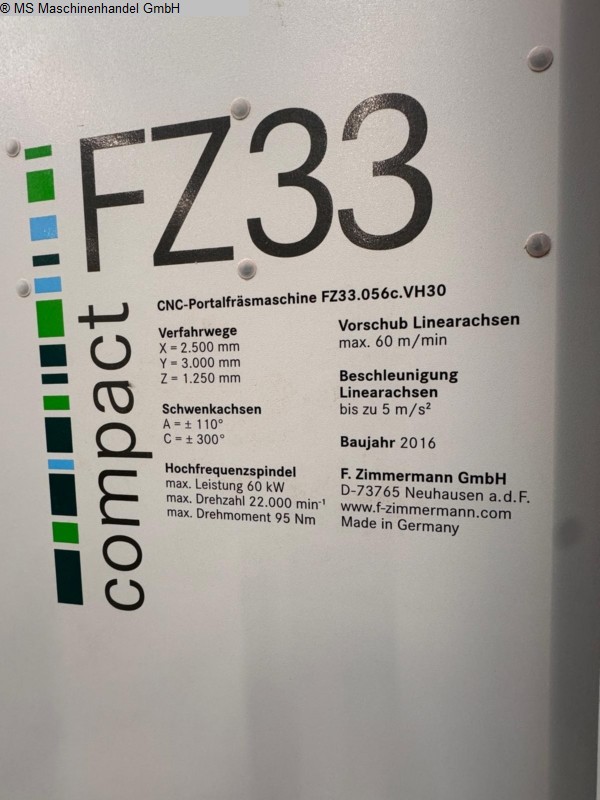

This ZIMMERMANN FZ33c is in very good condition.
The machine is immediately available

Description:
Technical data of the system and working areas
X-axis 2500 mm
Y-axis 3000 mm
Z-axis 1250 mm
A-axis ± 110 °
C-axis ± 300 °

incl. vibration sensor
incl. storage temperature sensor
incl. rotary feedthrough for internal KM feed IKZ

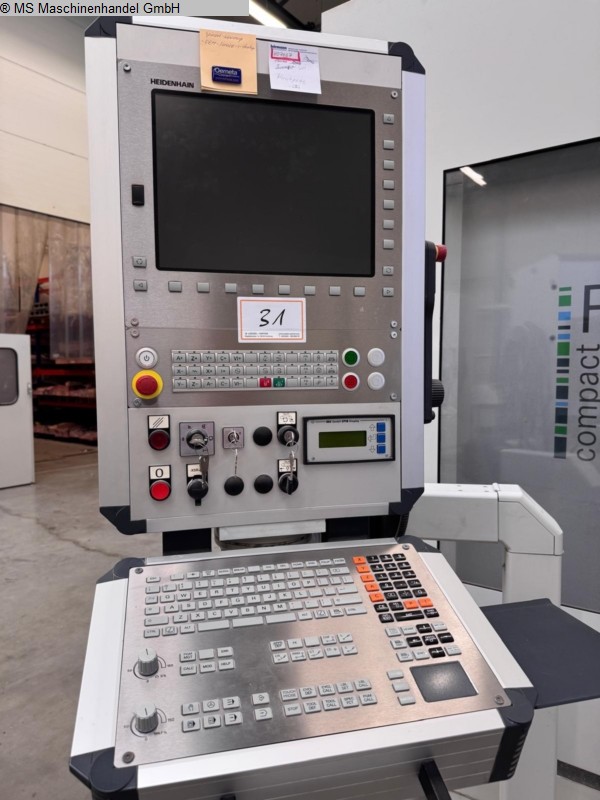

5-axis contouring control: Heidenhain iTNC 530/Handwheel HR520, 15 TFT colour display

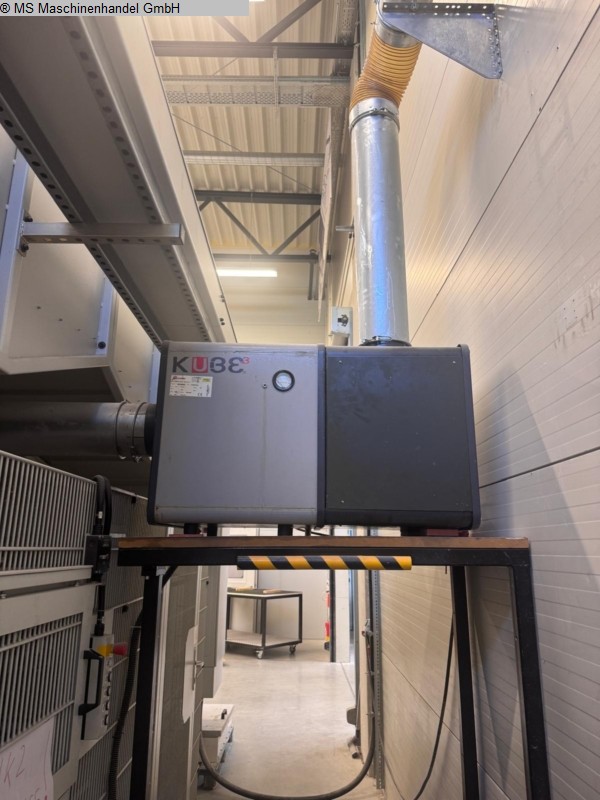

Keller Vario P1 extraction system
Engine room roofing

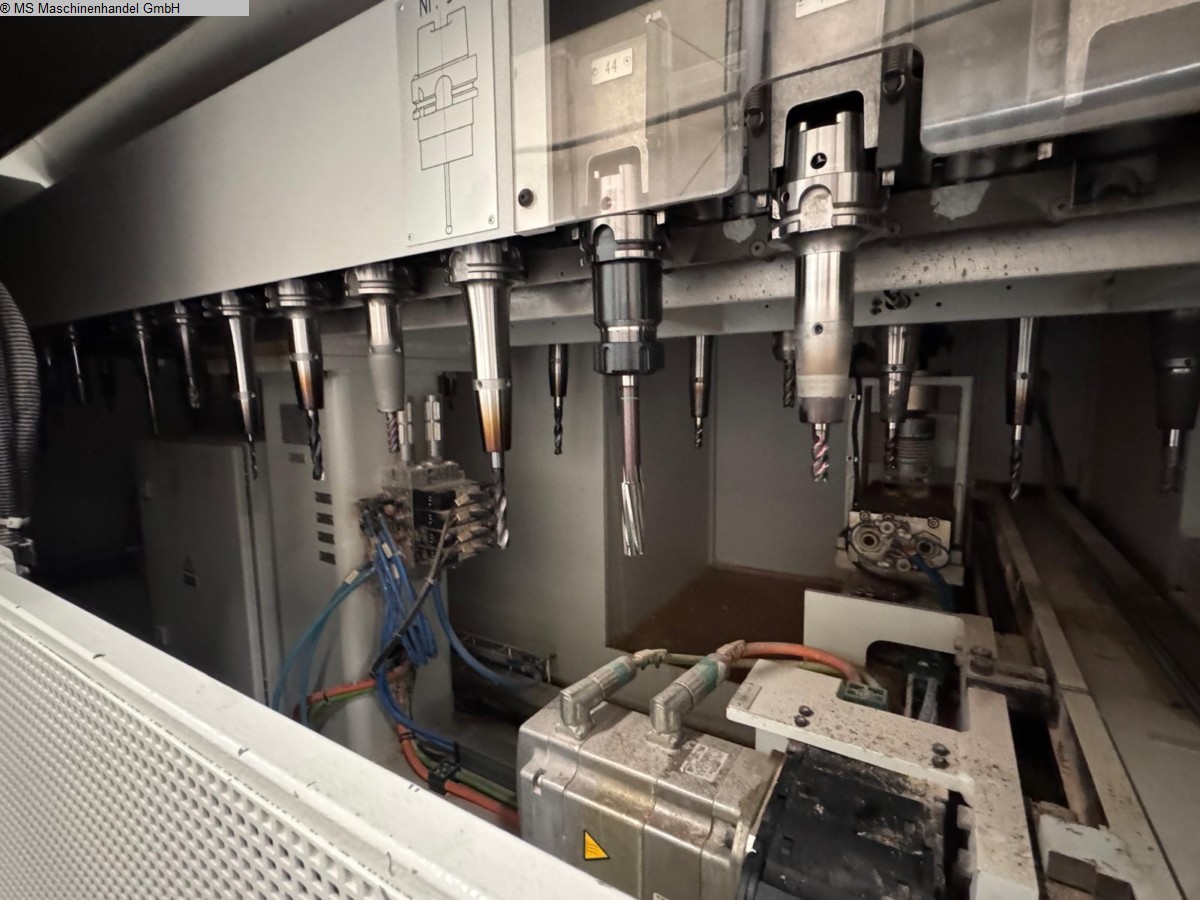

50-position tool changer, chain magazine, behind the machine

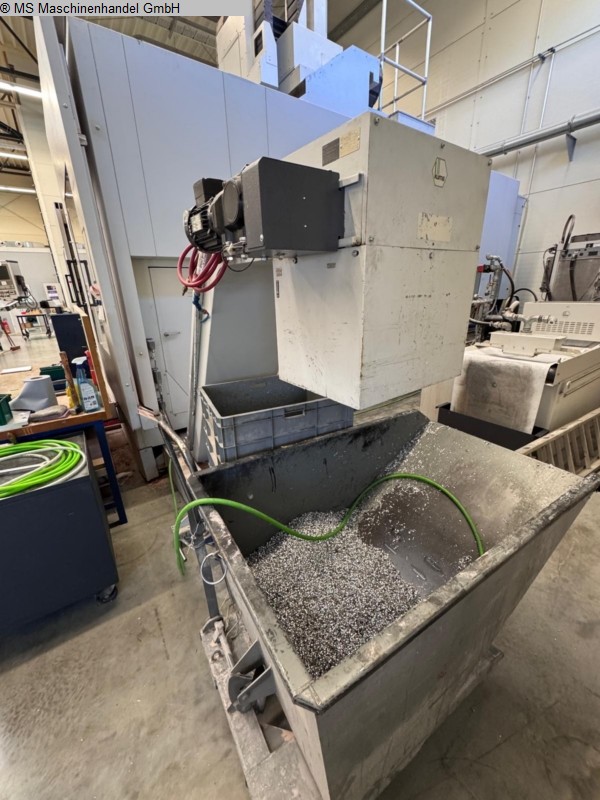

Chip conveyor, ejection 60° left, face side
Renishaw RMP60 touch probe
Blum Laser WZ measurement "Control NT-Micro"

Clamping table
Length x width x height 2500 x 3250 x 400mm
Table load 8000 kg/m² (max. 16000 kg)
T-slots, arranged lengthwise 18H12
Distance T-slots 250 mm

Dimensions, weights

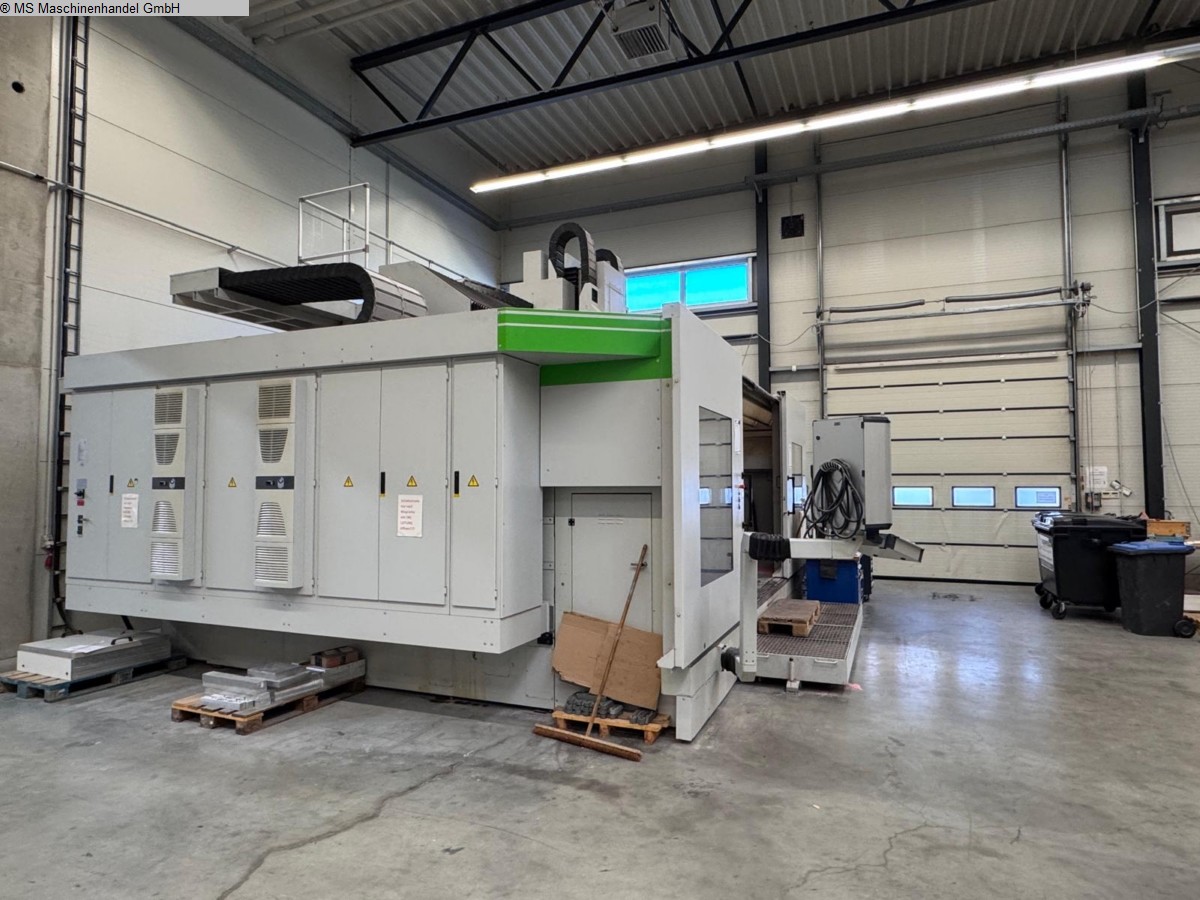

Space requirement (without peripheral devices) approx. 7600 x 7300 x 5650 mm
Total weight approx. 53500 kg

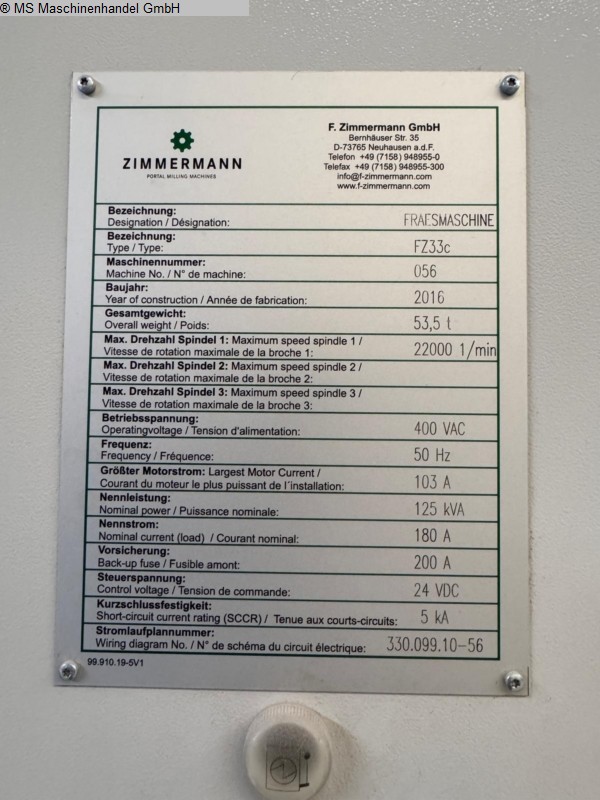

Electrical connection values
Voltage (three-phase current) 400 V
Frequency 50 Hz
For securing see installation plan
Power requirement see installation plan

Compressed air connection (on site)
Required air pressure 6 bar
Average air consumption approx. 15 m³/h (depending on
machine equipment)

Linear axis drives
Feed speed X-, Y-, Z-axis 60 m/min
Axle acceleration X-, Y-, Z-axis up to 5 m/s²

Rotary axis drives VH30
Feed speed A-, C-axis 360 °/s
Axle acceleration A-, C-axis 700 °/s²
Resolution A-, C-axis 0.0001

Accuracies of linear axes according to VDI / DGQ 3441
Positioning accuracy X-axis P= 0.026 mm
Y-axis P= 0.028 mm
Z-axis P= 0.020 mm
Repeat accuracy X-axis Ps= 0.015 mm
Y-axis Ps= 0.016 mm
Z-axis Ps= 0.010 mm
Resolution of the measuring systems (interpol) A-, C-axis 0.0001°

Accuracy of rotary axes VH30
Positioning accuracy A-, C-axis P= 12 = 0.0033°
Repeat accuracy A-, C-axis Ps= 8 = 0.0022°

Milling head VH30
2-axis milling head: VH30,
Milling spindle Siemens Weiss
Spindle power S1 (100% ED) 60kW,
Spindle speed 22,000 rpm, 95 Nm, HSK-A63
Outer dimensions fork head L x W approx. 500 x 600 mm
Nominal torque of rotary axes control circuit A: min. 1200 Nm
C: min. 1047 Nm
clamped A- and C-axle: 3000 Nm
(permanent grease lubrication with automatic relubrication system)
Swivelling axis spindle nose 326 mm
Tool holder HSK 63 A
Tool tension Spring compressor
Hydraulic tool clamping
Permissible tool weight 4.5 kg (manufacturer's specification)

External and internal coolant supply
Cooling lubricant supply (emulsion) on the front of the milling spindle with

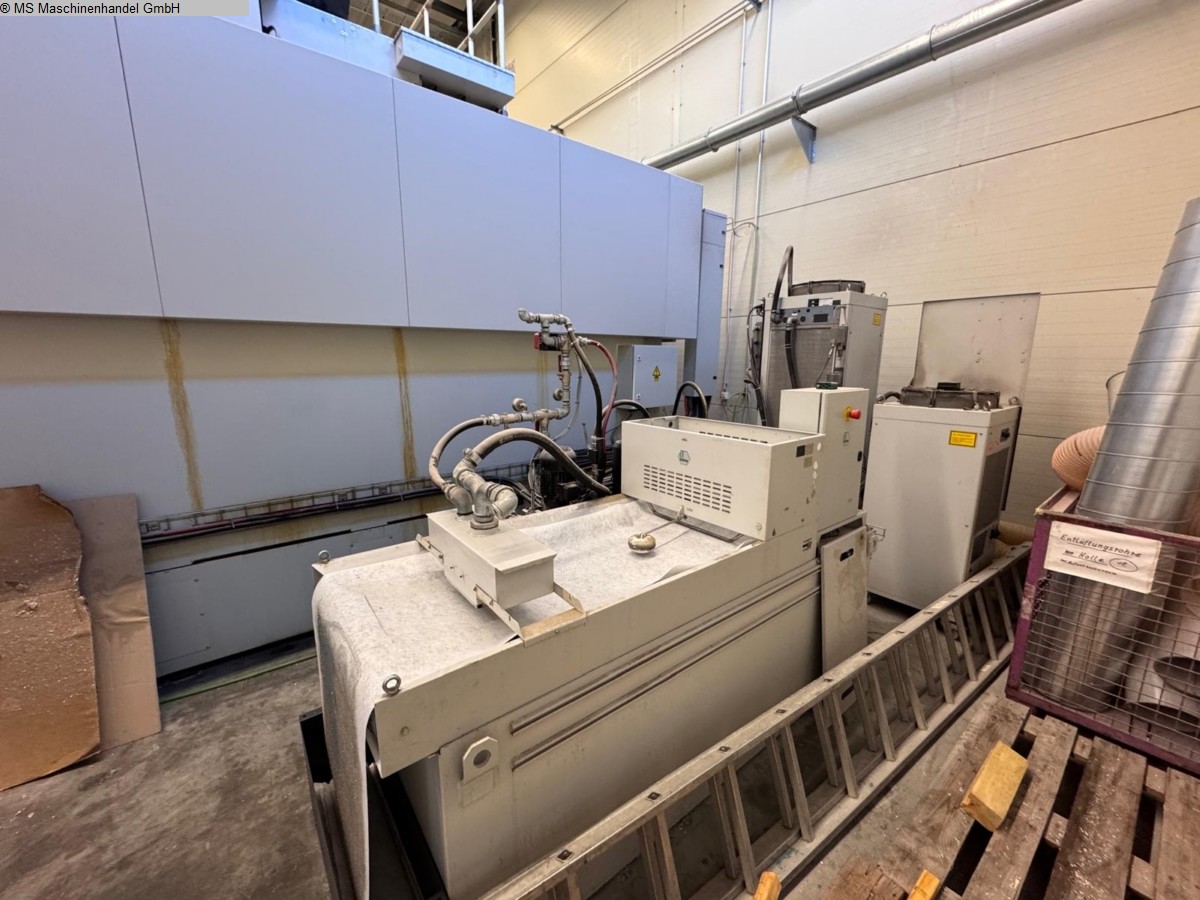

Belt filter system
Volume 1500 litres
Pump 1: 40 litres/min at 20 bar
Pump 2: 20 litres/min at 40 bar,
Blast air at the front of the milling spindle



Technical details

---

x-way 2500 mm
y-path 3000 mm
z-path 1250 mm
Control HEIDENHAIN iTNC 530
Spindle speeds 22000 rpm
Tool holder HSK A-63
Spindle motor 60 kW
Headstock swivelling +/- 110 °
c-axis 360
Tool changing device 50 Pos.
Table dimensions - lengthwise 2500 mm
Table dimensions - transverse 3250 mm
Coolant system 40 bar
Total power requirement kW
Machine weight approx. 60 tonnes
Space requirement approx. 7.6 x 7.3 x 5.7 m
